IESP-5417-8145U-C
17-inch IP66 Waterproof Panel PC
Mechanical
Chassis: SUS304 Stainless Steel Chassis(SUS316 Stainless Steel Optional)
Rear Cover: Aluminum CPU Cooling Cover
IP Rating: Full IP66
Dimensions: 432mm x 358mm x 64mm
Mounting: VESA Mount (Wall Mount, Table Mount optional)
Color: Stainless Steel Natural Color
Weight: 9 Kgs
System Data
CPU: Onboard Intel Core i3/i5/i7 Processor
BIOS: AMI BIOS
Graphic: Intel HD Integrated Graphics
Memory: 4GB RAM (8/16GB RAM optional)
Storage: 120GB SSD (240/480GB optional)
Expansion: 1 x mSATA Slot, 1 x mini PCIE Slot (For WIFI Module)
System: WIN7/WES7/WIN8/WIN10
LCD
LCD Size: Sharp 17-inch TFT LCD
Aspect Ratio: 4:3
Resolution: 1280 x 1024
Viewing Angle Range: 85/85/85/85
White Luminance: 350cd/m2 (1000cd/m2 High Brightness optional)
Contrast Ratio: 1000:1
Backlight: LED
Colors: 16.2M colors
Touch Screen
Type: Projective Capacitive Touchscreen
Controller Interface: USB
Touchscreen Light Transmission: 90%±3%
Life Time:100 million times
Cooling System
Cooling Mode: Fan-less Design

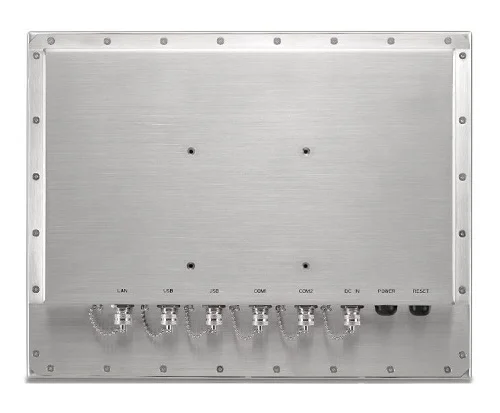

Waterproof I/O Ports
LAN: 1 x M12 8-pin for LAN (2*GLAN optional)
Serial Port: 2 x M12 8-pin for COM RS-232 (RS-422/485 optional)
USB: 2 x M12 8Pin for USB 1/2 and USB 3/4
Power: 1 x M12 3-pin for DC power connector
Control Buttons: 1 x ATX Power on/off Button
Power
Power Input: 12V DC (Wide Power Range optional)
Power Adapter: AC 90 ~ 264V / 47 ~ 63 Hz / 84W, DC output 12V
Environment
Operating Temp: -10°C ~ 60°C
Relative Humidity: 0% ~ 90% Relative Humidity, Non-condensing
Options
CPU: Intel 6th/8th/10th Gen Core i3/i5/i7 CPU optional
Memory: 8GB/16GB Memorry optional
Serial Port: Multi Serial Ports optional (Max. 6*RS-232/422/485)
WIFI: WIFI optional
Speaker: 2 x Internal Speakers optional (IP65)
LOGO: Provide Customized Services
