Product Overview

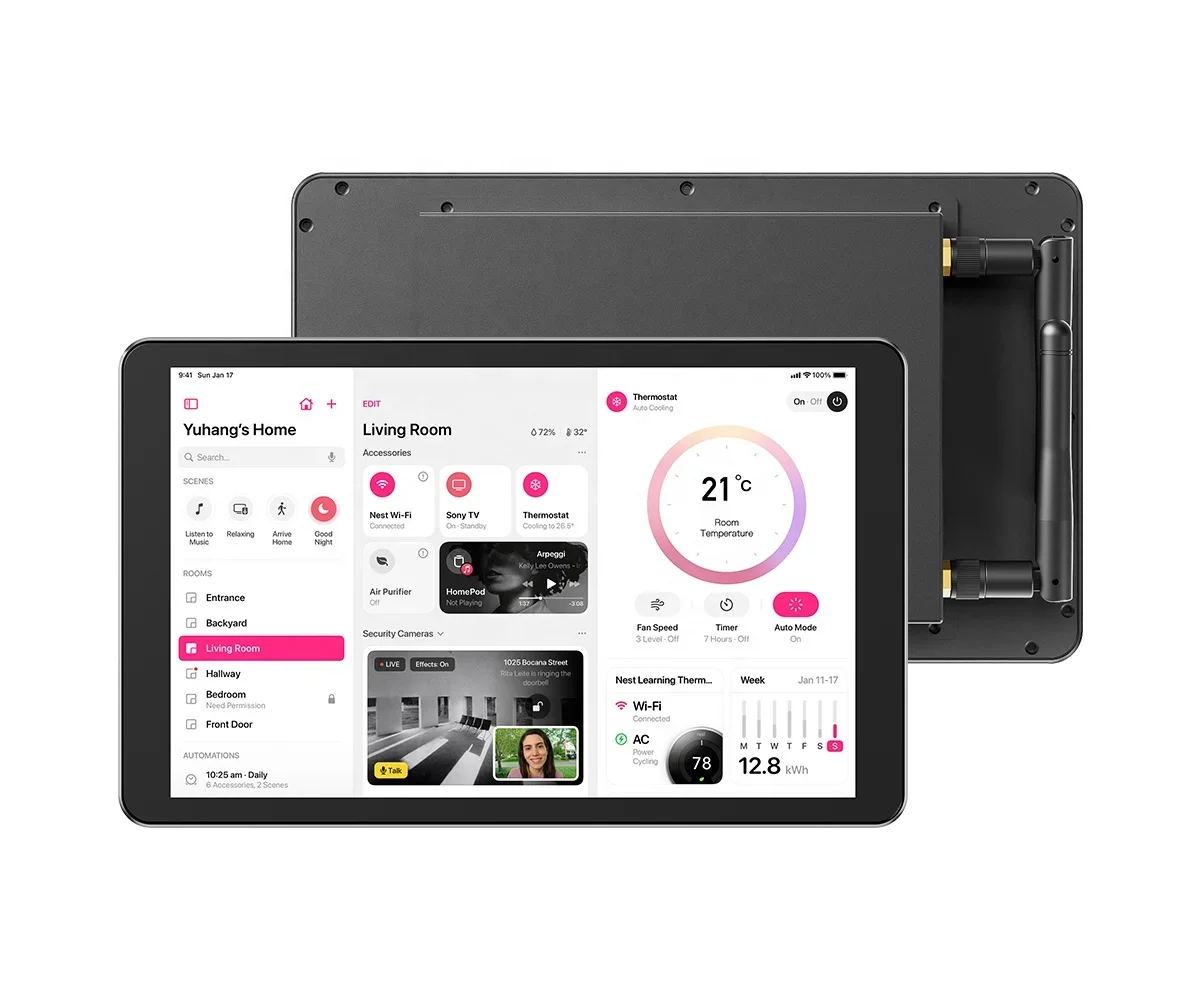

Customized tablet POE android wall panel interactive touch screen displays smart home panel monitors tablet with sim card HDMI
The wall mounted smart home gateway control panel aims to provide you a single place to interface with your smart home. It is easy to install and easy to use, you can easily control multiple smart devices at the same time.
The smart home gateway control panel can integrate seamlessly your old and new devices, and makes them more intelligent making it more convenient for you to operate around the house.
Screen size
● 5.5inch, 7inch, 8inch, 10.1inch available,Wall mount supported;
CPU
● MTK/Rockchip/Unisoc CPU optional;
Interface
● RJ45, Type C,UART,GPIO,POE(Power Over Ethernet）
● 1*USB-A(data);1*USB-C(data&OTG)
● 2*Nano SIM or Nano SIM+MicroSD
● RS485:1(1*KF350;1*RJ11)
● HDMI/Fingerprint/RFID optional
● Various interfaces:audio, hdmi, usb 3.0, usb OTG,DC in etc…
Certificate
● CE/FCC/ROHS/UKCA/RCM/Reach/Weee certified.
OS
● Android system,Linux optional,Android OS or Linux OS;
● 5G Dual Band WiFi, BLE5.0;Function
● Zigbee 3.0, Zwave tuya optional;
● 5G Dual Band WiFi, BLE5.0;
● Box speakers 8Ω/1.0W*2
● Magnetic or Embedded design● Powerful Active Ceramic antenna
● android nfc tablet （android tablet front nfc),RFIDoptional
● Tap to pay ,contactless pay ,seamless pay
● Multi sensors-Light/proximity sensor etc;
8 inch android tablet User scenario
smart home control panel/Smart display
Meeting room Signage/Factory
Reception digital signage
Self service
POS payment terminal,android nfcVending machine
Pos machine Pos System
Pos terminal Tap to pay/android pos
Desktop tablet /tablet with stand
kids tablet
Restaurant Hotel
Hospital/Healthcare terminal/Medical
etc…
Feature optional
NFC
RFID
KNX
RJ45 POE
Koisk MDM
Audio
hdmi
DC in
Zigbee Zwave Matter
RS485 RS232
TF card
EMV
Wifi 5
Wifi 6
CPU
MT8768 4*A53 2.2GHz+4*A53 1.6GHz
RK3566 4*A55 1.8GHz RK3568 4*A55 2.0GHz
RK3576 4*A72 2.3GHz+4*A53 2.3GHz
RK3588 4*A76 2.4GHz+4*A55 2.4GHz
MT8168 4*A53 2.0GHz
MT8781 2*A76 2.2GHz+6*A55 2.0GHz
MT8788 4*A73 2.0GHz+4*A53 2.0GHz
T310 1*A75 2.0GHz+3*A55 1.8GHz
T606 2*A75 1.6GHz+6*A55 1.6GHz
T610 2*A75 1.8GHz+6*A55 1.8GHz
T616 2*A75 2.0GHz+6*A55 1.8GHz
T618 2*A75 2.0GHz+6*A55 2.0GHz
A523 8*A55 2.0GHz
Smart home tablet poe/wall tablet
10 inch tablet android/smart screens
Tablet POE android
Remark:The following is the recommended configuration. If you have specific requirements, please contact us to confirm whether adjustments can be made.
PHYSICAL PROPERTY
Type
Item
Description
WHOLE SET(Wall mount supported)
Shell
Metal vesa 86 Wall Mount
LCD Protector
Anti-scratch glass
Dimension(estimated)
200.3 x 124.5 x 32.3mm
Weight
900g
HARDWARE
DISPLAY
Size
8 inch TFT LCD IPS
Resolution
1280*800,1920 × 1280(RGB)
Type
Capacitive 5 point multi-touch screen,G+FF full lamination
OS
Version
Android 14 Android 13 Android 12 Android 11Linux Ubuntu Windows
PROCESSOR
CPU
MT8768 4*A53 2.2GHz+4*A53 1.6GHz
MT8781 2*A76 2.2GHz+6*A55 2.0GHz
MT8788 4*A73 2.0GHz+4*A53 2.0GHz
RK3566 4*A55 1.8GHz
RK3568 4*A55 2.0GHz
RK3576 4*A72 2.3GHz+4*A53 2.3GHz
RK3588 4*A76 2.4GHz+4*A55 2.4GHz
MT8168 4*A53 2.0GHz
T310 1*A75 2.0GHz+3*A55 1.8GHz
T606 2*A75 1.6GHz+6*A55 1.6GHz
T610 2*A75 1.8GHz+6*A55 1.8GHz
T616 2*A75 2.0GHz+6*A55 1.8GHz
T618 2*A75 2.0GHz+6*A55 2.0GHz
A523 8*A55 2.0GHz
MEMORY(UMCP available）
RAM
2GB 3GB 4GB 6GB 8GB LPDDR4
ROM
32GB 64GB 128GB 256GB eMMC
Power Supply
Battery Type
Lithium-ion polymer battery（tablet pc no battery）
Battery Capacity
5000mAh 6000mAh （tablet pc no battery POE 12W 24W RJ45）
Worktime
6 hours video playing
DC in
1*5V 3A(5.5mm) 15W
1*12V 2A(5.5mm) 24W
AC Adaptor
Input:100-240V,50-60Hz.Output:5V/3A,DC5.5mm
CAMERA
Front Pixels
2MP 5MP FF （tablet pc without camera）
Rear Pixels
8MP 13MP AF(with flash light)（tablet pc without camera）
AUDIO
Speaker
Box speakers 8Ω/1.0W*2 box speakers 4 box speakers
Microphone
MICx1
FM
Yes
SENSOR
Optional
NFC
G-sensor/Accelerometer
Compass/Magnetometer
Light sensor/Optical sensor
Proximity sensor
Gy-sensor/Gyroscope sensor
Infrared sensor
Fingerprint sensor
Vibration sensor
3D TOF
COMMUNICATION
INTERACTION
LTE/3G/2G
Optional
WiFi
IEEE 802.11ac/a/b/g/n 2.4GHz&5GHz Wifi 5 Wifi 6
Bluetooth
BT5.0
GPS
GPS /GLONASS/BDS
NFC
Optional
CONNECTION
I/O PORTS
USB
Optional
SD card
Optional
SIM card
Optional
Band
FDD:B1/3/5/7/8/20,B2/4/7/17/28 Optional
TDD:B38/40 Optional
Audio Jack
1*3.5mm Type-c
Other optional
Audio,hdmi out,USB 3.0,USB OTG,POE,rj45,TF card，DC in
POWER SUPPLY
AC Adaptor
Input:100-240V,50-60Hz.Output:5V2A 5V3A 9V2A
Specs
EU/US/UK/AU/CN/JP
OTHER
ENVIRONMENT
Operating temperature
-10℃ to 60℃
Storage temperature
-20℃ to 70℃
ACCESSORIES
Active stylus/Pen
Optional
Keyboard
Optional
USER SCENARIO
Multi-scene
Smart home MonitorSchool Educational
Restaurant Hotel E-menu
Meeting room Signage all in one Dashboard Signage
Hospital Medical
pos system Embedded
Advertising self checking terminal
vending machine
3D TOF
etc…
FEATURE
Multi-functional
Smart Touch panel ScreenSeamless payment Device NFC RFID reader
KNX Koisk MDM
RS485 RS232 RJ45 POE HDMI
Zigbee Zwave Matter
etc…

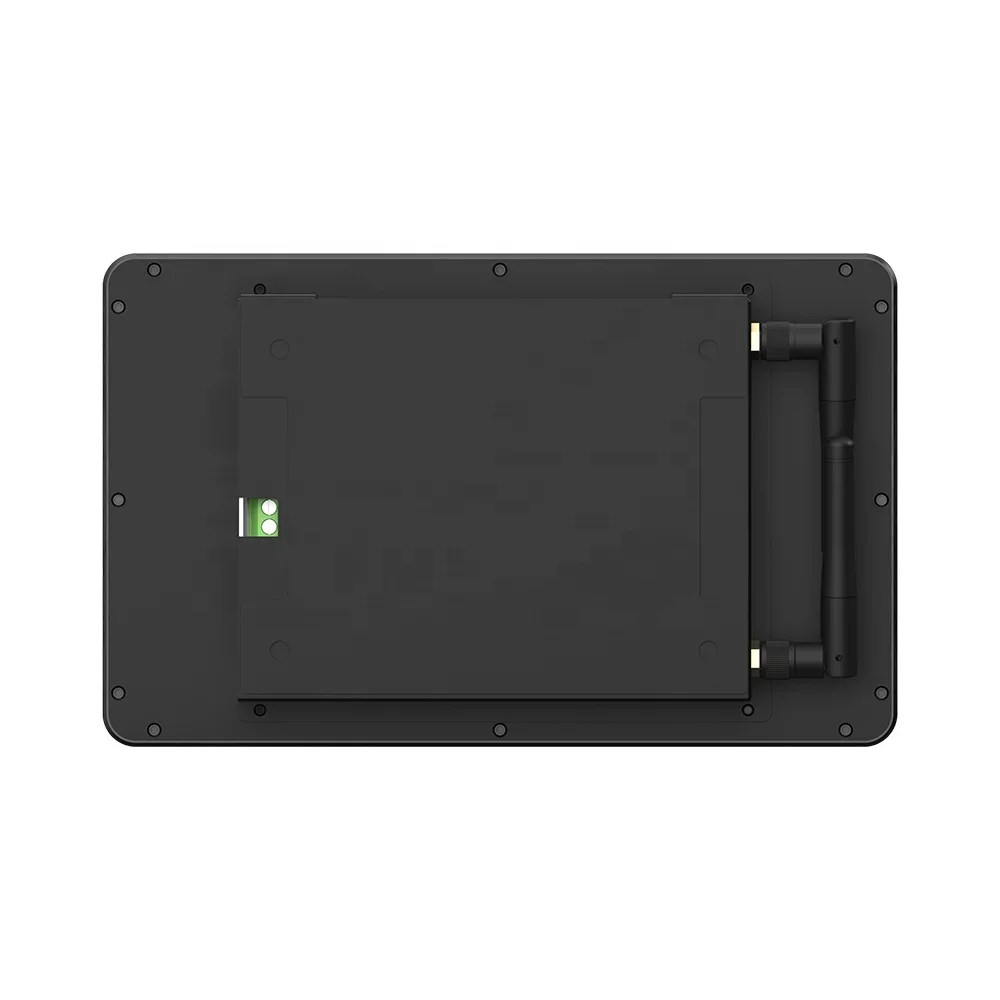

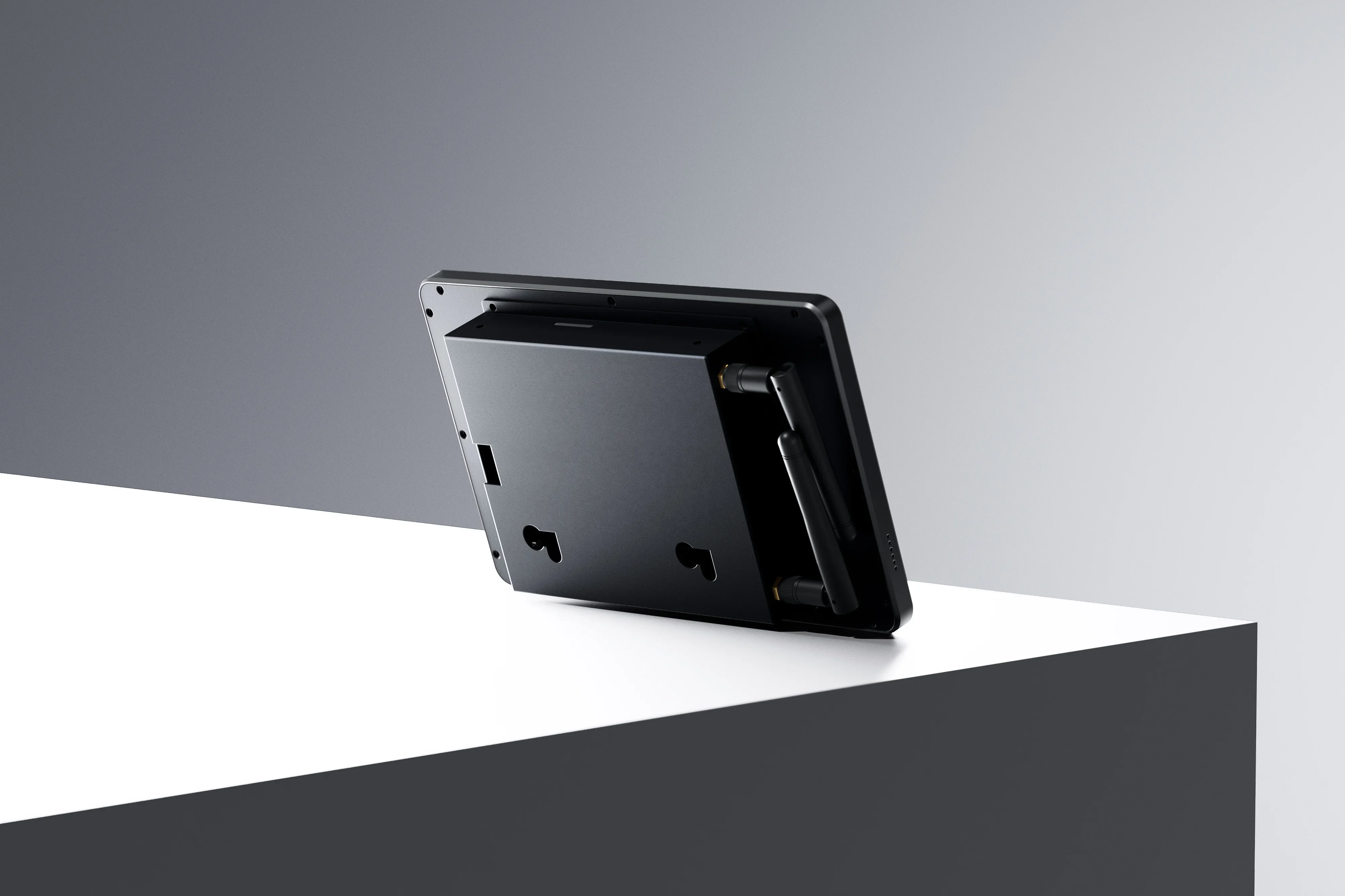

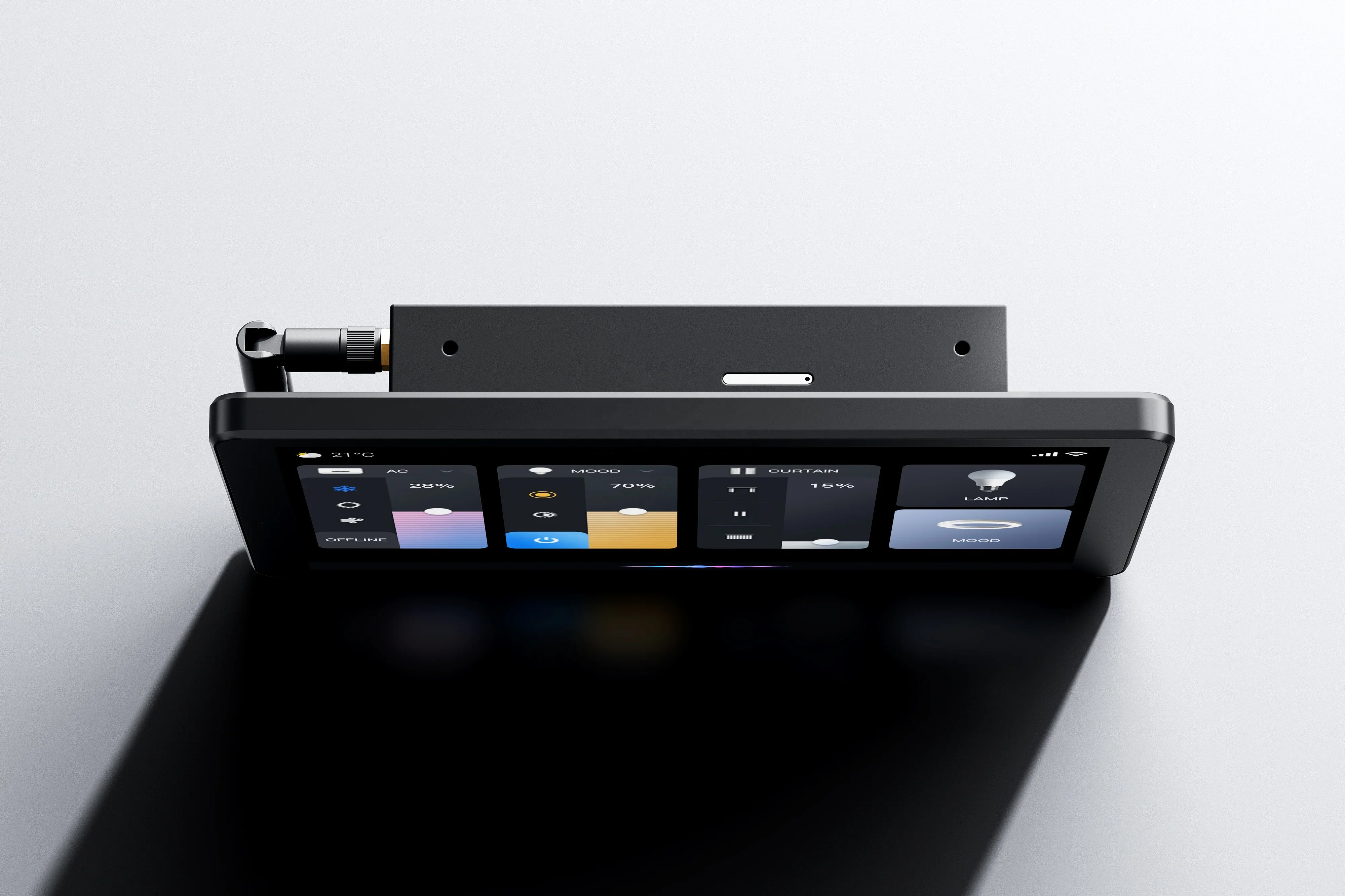

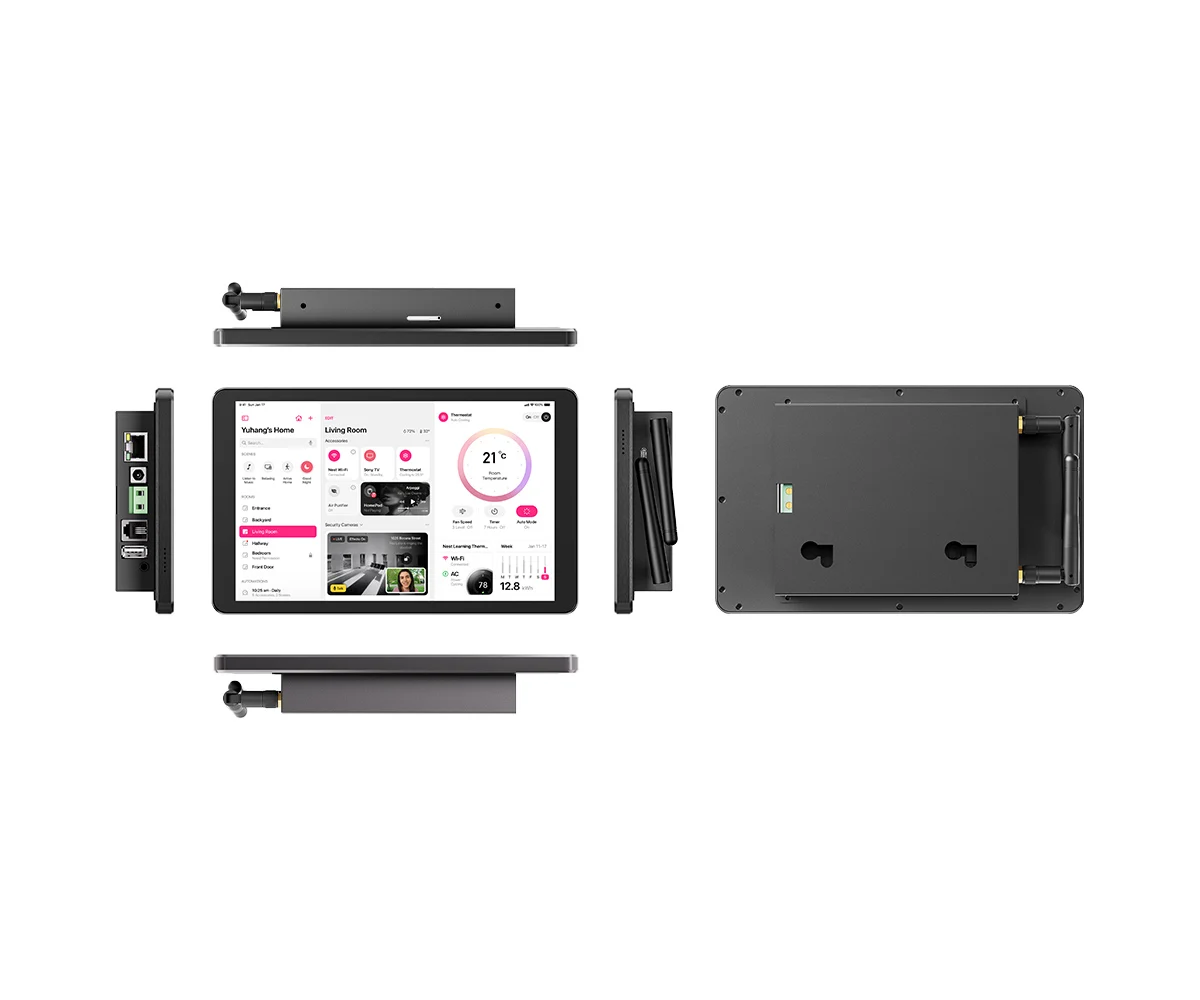

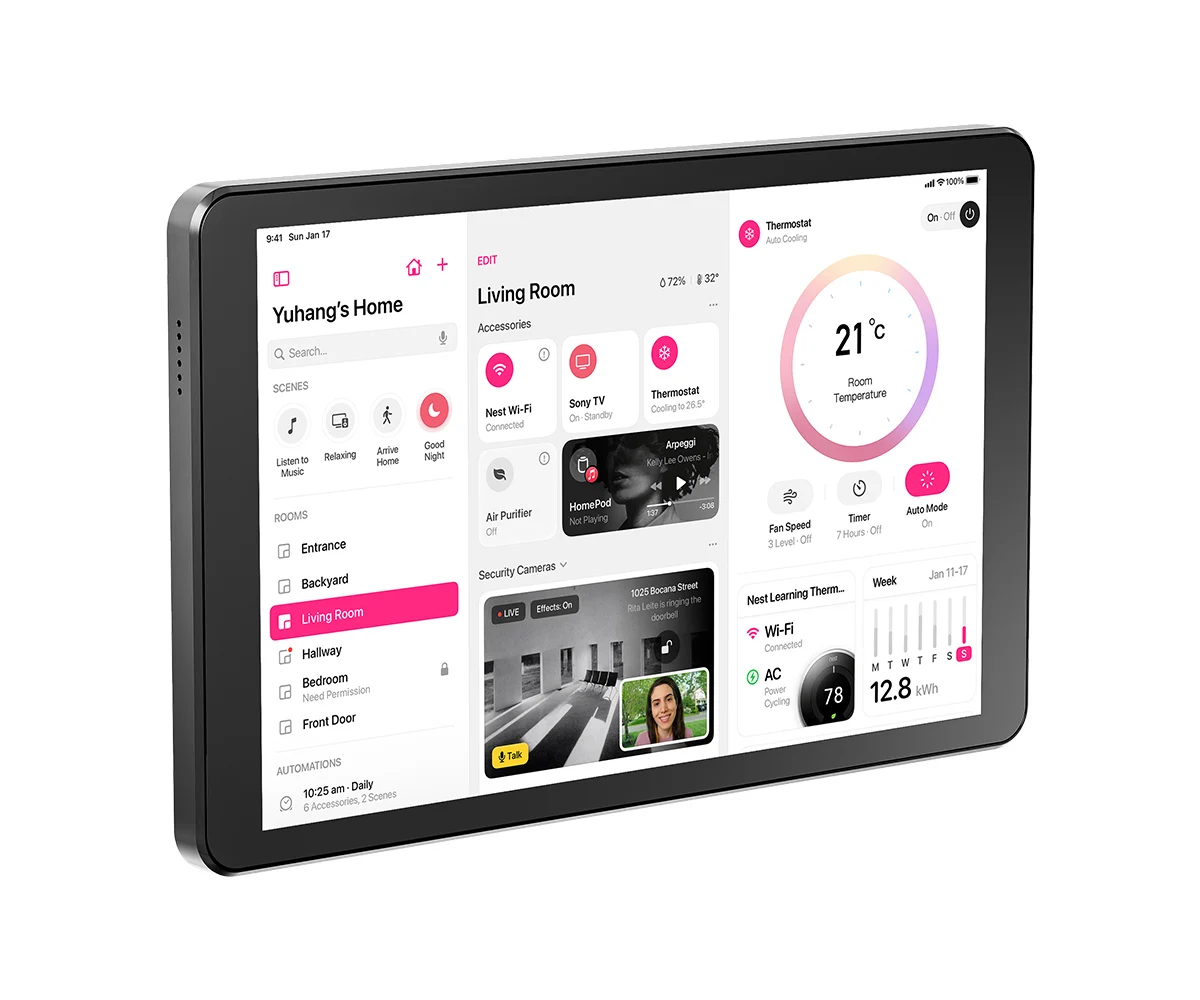

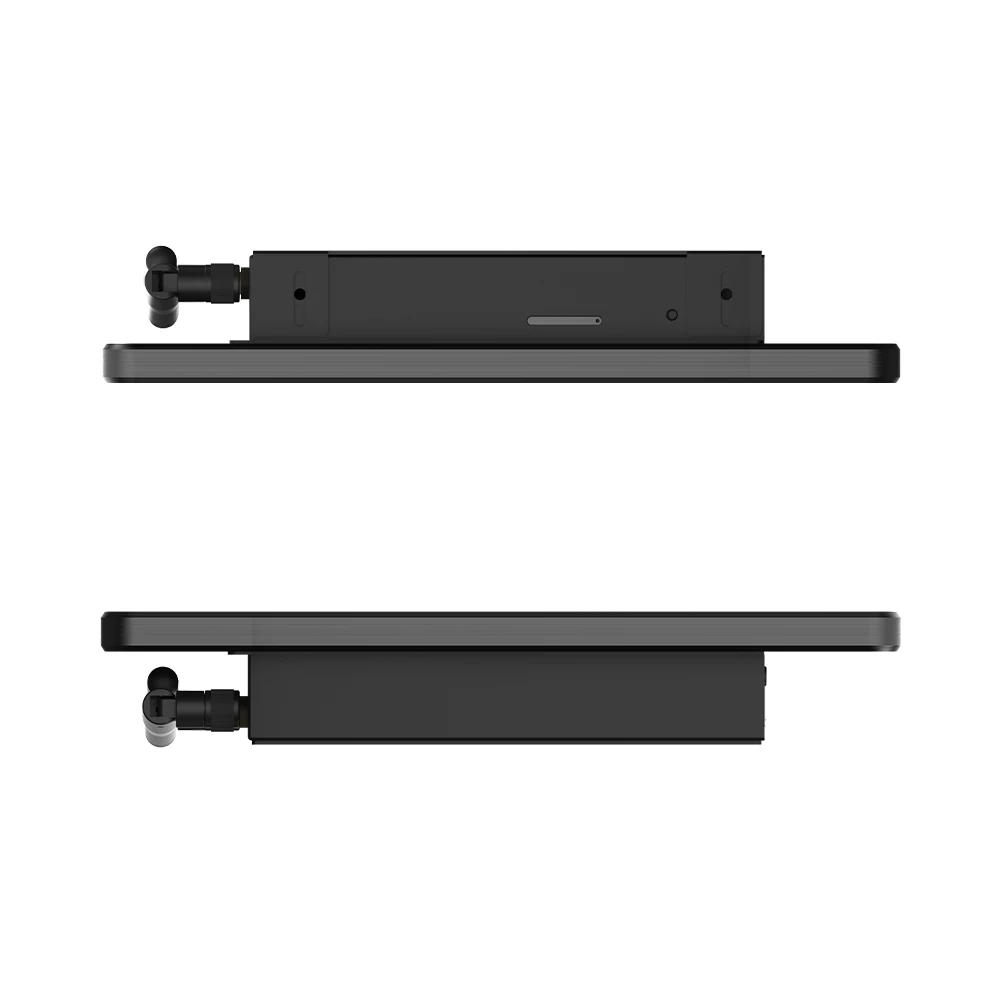

The following product pictures are for your reference only; we can customize them for your scenario.

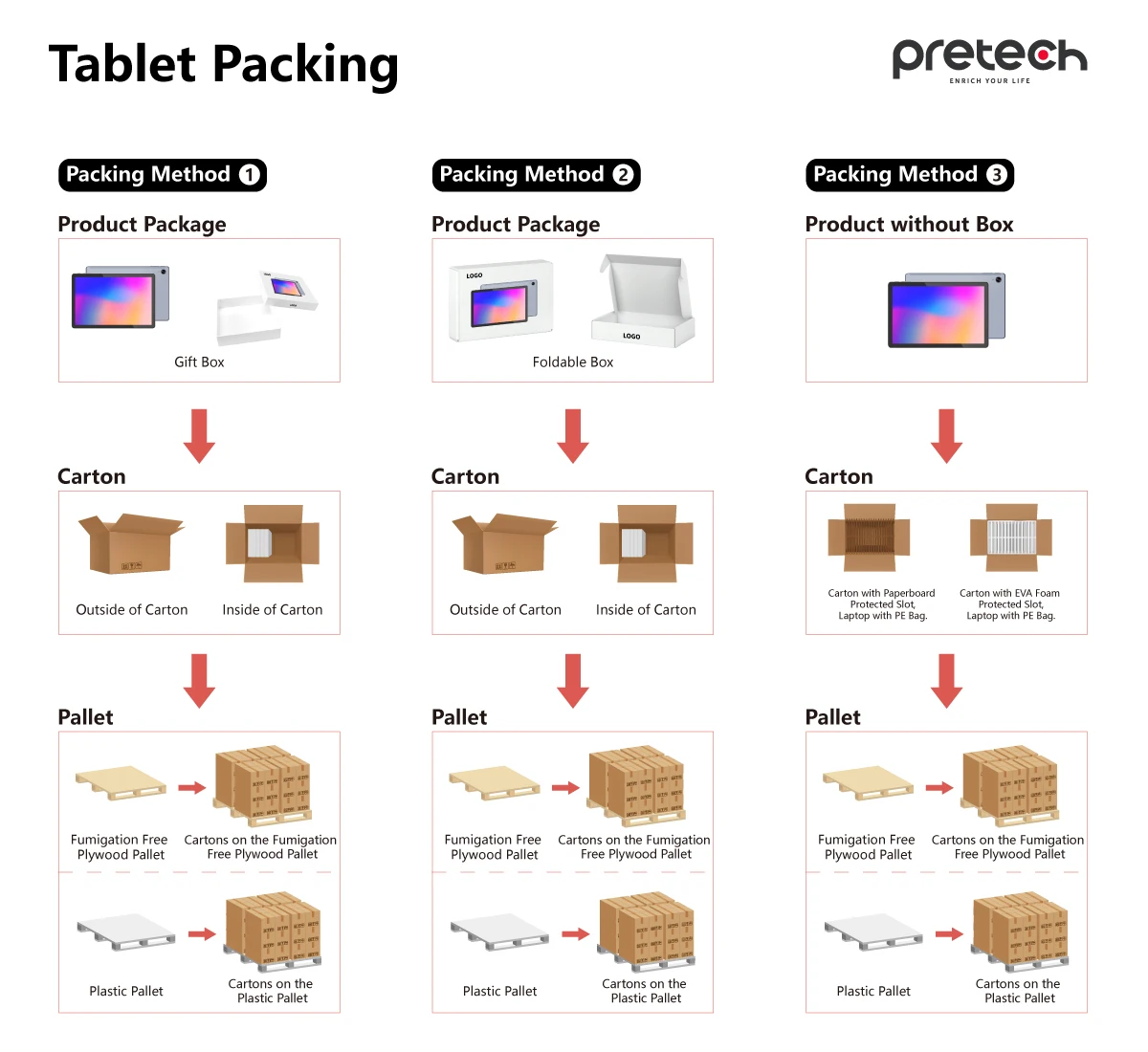

Product Accessories & Packaging
Our Services
OEM Services:
* Print Logo on Back Case(Plastic/Metal), Touch Panel and Accessories(Giftbox/User manual/Warranty
card/Charger/Leather case) etc
* Support free Artworks customization
* Support free Software customization(Including Startscreen/Wallpaper/System information/Pre-insall Apps etc)
ODM Services:
We offer ODM solutions for certain customers who have specific needs which can’t be satisfied by existing devices in the market.
we can provide :
* ID/MD/PCB/Accessories/Package design
* Software customization/debugging/provide SDK or source code
And Now our ODM services has covered more than 10 different application fields, such as :
* Smart home IOT projects, with zigbee, z-wave, lorawan, MQTT, HTTP, POE, wall mount…etc function
* Smart Kitchen Appliance, such as coffee maker, toaster, tea milk vending machine
* Smart healthcare products for hospitals & patients & seniors
* OBD & Navigation & car hearest display Device for Vehicle
* Smart Payment Terminal Device
* Education projects*Smart gym solution
After-sale Service:
* 1year warranty for all products(Exclude accessories), any terminals with quality issue(Exclude human factors) can get repaired or replacement from us.
* If clients handle the service locally, we will provide recommendations for clients to purchase some Spare parts(PCBA/LCD/Touch panel/Battery etc)
* For the product assembling and repairing, we will provide video. If necessary, we will send technical staff to train
* Technical assistance for whole life
Company Introduction
Pretech was founded in 2010 and specializes in OEM/ODM consumer electronics. Our main products comprise smartphone, tablet pc ,laptop and stylus pen.
We have been OEM and ODM manufacturer for over 12 years based in Shenzhen China, our factory covers an area of 5000+ square meters, with 350+ workers, 20 R&D, 35 QC, 5 dust-free assembly lines and 3 packaging lines, and the turnover last year was 450 million.
More recently, we have developed Android or Linux based smart terminals with LTE, WI-FI, Bluetooth, Zigbee, ZWave, NFC,3D TOF camera and various interfaces for smart home automation, smart security application fields, in-vehicle infotainment system, car diagnostic system, healthcare information system, smart appliances and numerous other application fields with smart interactive display needs. Pretech is deeply focusing on Hardware and OS research and development and we have helped lots of clients build their own smart terminals. Our products are CE, FCC, ROHS & Reach certified.
Certifications
Customer feedback
FAQ
Q1: Can you support to design the tablet pc/ smartphone /laptop outlook?
A1:Yes, we can custom ID and MD design with your reference and using scenario description.
Q2: Do you support the product software(SW) development?
A2: Normally we do system and driver level development, Application-level development will be done by Client or 3rd party
software(SW) developer assigned by clients.
Q3: Which OS can you support development?
A3:Yes, we can support tablet PC & smartphone custom OS based on Android OS ,Windows OS ,Linux OS, Ubuntu OS.
Q4: Can you support to remove the battery from tablet PC?
A4:Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as
well as we can support add the POE,USB Type C, DC IN, HDMI interface on the smart device.
Q5: Can you support SDK service?
A5: Yes, we can support SDK (software kit development) service for customers.
Q6: Do you have any experience with educational projects?
A6: Yes，we have rich experience with quite a lot educational cases.
1) 7inch wifi version PND for European big map dealer.
2) Windows 10.1inch OBD without battery/back cover for American 4s auto repair shop
3) 8inch T618 4g octa core tablet with high temperature compatible battery for Australia map dealer.
4)10.1inch android headrest entertainment tablet pc with explosion-proof touch screen for uber.
etc.countless cases
Q7: Can you support customization of accessories for smart devices?
A7:Yes, we can support custom smart cover, docking charging station, charging dock, magnetic back clip, wall mount, stylus pen for
smart device.
Q8: Can you provide prototype samples?
A8: Yes, in principle we can provide prototype samples before bulk order. For this we will need detailed requirements and then be
able to come back to you with the best proposed solution asap.
Q9: What‘s the normal ODM product development time?
A9: Normally, it takes 3-5 months, but it can vary depending on the complexity of the project. Please contact us and provide
detailed requirements and we will propose the best solution to you asap.
Q10: How is the ODM device development cost calculated?
A10: Development charge is in 2 parts:
1) Tooling design;
2) PCBA development and hardware tuning.
Cost also depends on the specific project.
Please contact us and provide detailed requirements and we will propose the most cost effective solution to you asap.
Q11: Can we sign NDA?
A11: Yes, we can sign NDA.
Q12 How to deal with the intellectual property?
A12: It’s joint development between clients and Pretech. The ownership of the intellectual property depends on the agreement
between clients and Pretech.
Q13: What’s your after-sales service for ODM smart device ? Can you support two year’s or more warranty?
A13: Normally, we provide a 1-year warranty as standard. However, we can support a 2-year warranty or more, if the customer
enquires. Please contact us and provide detailed requirements and we will propose the most suitable solution to you asap.
