12 “15” 17-дюймовый ЖК-экран «все в одном» ПК Wind10 Android емкостный сенсорный экран промышленный панельный ПК RS485 промышленный панельный ПК

Product Description
Display
Screen
21.5″LCD
Resolution
1920*1080
Brightness
250 cd/m2
Touch Screen
Multi-touch projected capacitive
Performance
Chipset
Intel® Celeron® Bay Trail J1900 2.0GHz Processor
Memory
4G DDR3L 1333MHz, Up to 8GB
Storage
128GB, Up to 512GB
Watchdog Timer
Monitors voltage, CPU, TEMP
OS
Windows 7、Windows 10、 Linux
I/O
USB
3*USB 2.0 + 1*USB3.0
LAN
1* RJ45 Gigabit Ethernet
Serial port
2*RS232, 1*RS232/RS422/RS485 Optional
Audio
1*Line-out, 1*Mic-in
Video
1*VGA+1*HDMI
Expansion Slot
1*Mini PCIe(WiFi/BT/4G Optional)
GPIO
4In/4Out(Optional)
Environmental
Operating Temp.
0℃～50℃
Storage Temp.
-20℃～70℃
Humidity
95% @40℃, non-condensing
IP Rating
Front panel IP65
Shock Protection
10G/11ms
Vibration Protection
5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Mechanical

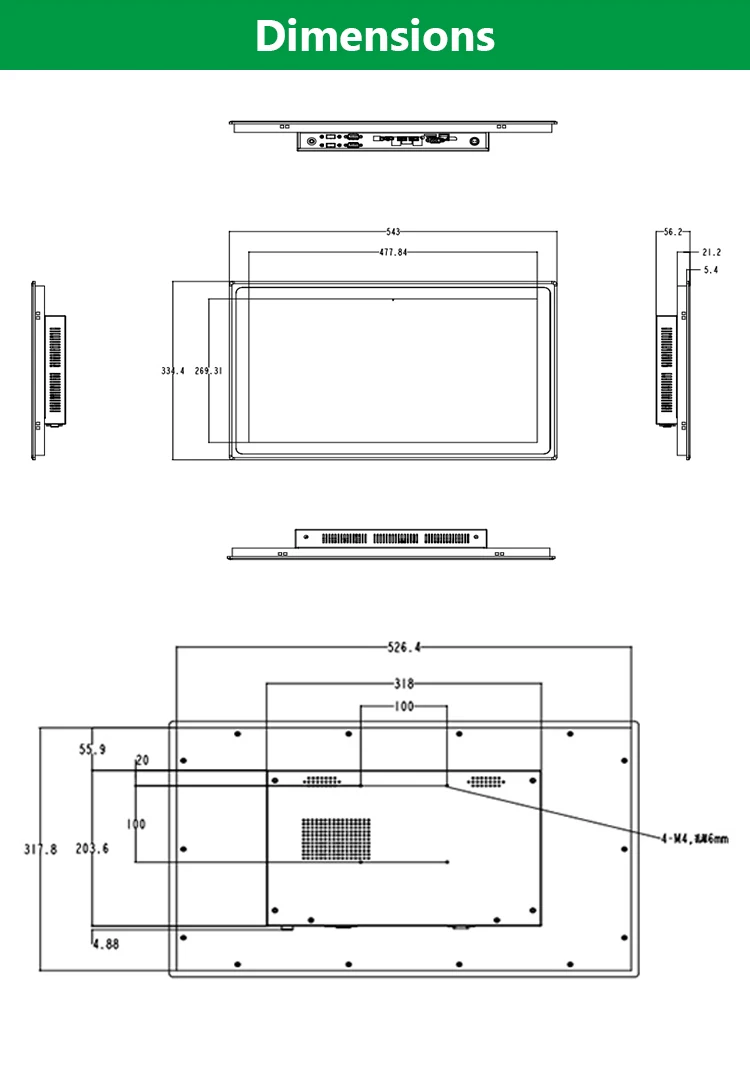

Dimension
543mm*334.4mm*56.2mm
Installation
VESA mounting: 100*100mm Panel mounting: 526.4*317.8mm
Weight
8.31kg/9.85kg
Color
Silver/Black
